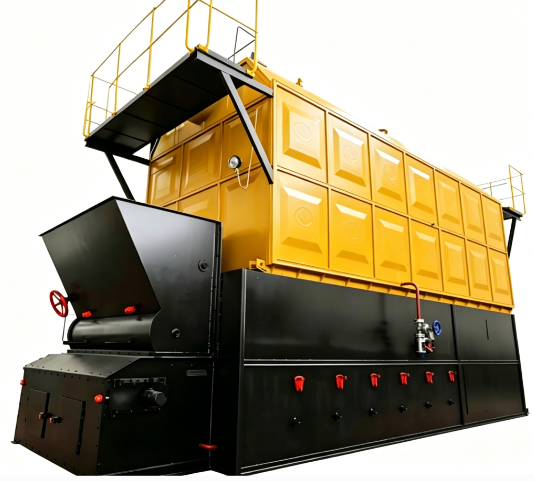

10 Ton 700BHP Biomass Steam Boiler For Low Pressure Industrial Steam Applications

Cantidad de orden mínima :	1	Precio :	Negociable
Detalles de empaquetado :	Se adoptan diferentes métodos de embalaje según los diferentes modos de transporte.	Tiempo de entrega :	30 días
Condiciones de pago :	LC, D/A, D/P, T/T

Lugar de origen:	Porcelana	Nombre de la marca:	Xinjie

Información detallada
Tipo de instalación:	Instalación interior o exterior disponible	Almacenamiento de combustible:	Sistema de alimentación/tolva integrado o externo
Capacidad de vapor:	10 toneladas, 10 tph, 700 BHP, 10 toneladas por hora	Temperatura del agua de la salida:	150/130/90/70
Estándares de emisión:	Cumple con las regulaciones de emisiones de la EPA y la UE.	ignitionType:	Encendido eléctrico automático
Consumo de combustible:	Depende del tamaño de la caldera y del tipo de combustible, normalmente entre 1,5 y 3 kg/kWh	Garantía:	Normalmente entre 1 y 3 años, según el fabricante.
Temperatura de funcionamiento:	Hasta 180 ° C	Sistema de control:	Control PLC automatizado con interfaz de pantalla táctil
Resaltar:	10 Ton Biomass Steam Boiler , 700BHP Biomass Steam Boiler , Low Pressure steam boiler

Descripción de producto

DZL Series Horizontal Quick-Assembled Steam Boilers

Product Overview

The Biomass Boiler features a horizontal three pass fire tube structure that enhances heat transfer efficiency and ensures uniform heating. Manufactured from high quality carbon steel with advanced welding technology, this Biomass Boiler offers excellent durability and resistance to high temperature conditions. The combustion system is specially designed to achieve complete fuel burning, reducing energy waste and improving overall efficiency. This Biomass Boiler is engineered for continuous industrial operation, delivering stable performance with low maintenance requirements.

Applications

Compact structure with minimal floor space requirements
Single-floor boiler room arrangement reduces construction investment
High assembly degree for shortened installation periods and lower costs
Comprehensive heat transfer surface arrangement for rapid heating and pressure buildup
Independent wind box system with adjustable air volume for optimal combustion
Stepless speed regulation grate suitable for wide coal type compatibility
Fully automated control system with comprehensive monitoring instruments

Applications

The Biomass Boiler is widely used in industries such as food processing, textile manufacturing, paper production, chemical processing, and district heating systems. It is suitable for burning various biomass fuels including wood chips, rice husk, straw, and pellets. The Biomass Boiler plays an important role in providing stable steam supply for industrial processes while supporting sustainable energy utilization. Its flexibility makes it suitable for a wide range of applications across global markets.

Technical Specifications

Parameter	DZL1-0.7/1.0	DZL2-1.25/1.6	DZL4-1.25/1.6	DZL6-1.25/1.6	DZL10-1.25/1.6	DZL15-1.25/1.6	DZL20-1.25/1.6
Rated Evaporation (t/h)	1	2	4	6	10	15	20
Working Pressure (MPa)	0.7/1.0	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6
Steam Temperature (°C)	170/184	194/204	194/204	194/204	194/204	194/204	194/204
Boiler Efficiency (%)	>76	>78	>78	>80	>80	>80	>80
Fuel Consumption (kg/h)	167.9	330	655	870	1440	2240	2860

Operational Advantages

The Biomass Boiler provides high thermal efficiency by utilizing renewable biomass fuels, reducing operating costs and improving energy utilization. Its efficient combustion system ensures complete fuel burning and stable heat output.

Another key advantage of the Biomass Boiler is its environmental performance. It significantly reduces emissions compared to traditional fossil fuel boilers, supporting green and sustainable industrial development.

Additionally, the Biomass Boiler features a robust and durable design that ensures long service life and reliable operation. Its compact structure allows easy installation and integration into existing systems. Low maintenance requirements and high efficiency make this Biomass Boiler an excellent choice for industrial users.

Global Market Presence

The Biomass Boiler is widely exported to regions including Asia, Europe, North America, South America, and the Middle East. With increasing demand for renewable energy solutions, the Biomass Boiler has become a preferred option for industries worldwide.

In conclusion, the DZL Series High Efficiency Biomass Boiler for low pressure industrial steam applications provides a reliable, efficient, and eco friendly Biomass Boiler solution for global industrial steam systems.
